Gluing Silicone Label Dispensing Shoe Sloe Vamp Slipper Making Machine For Sales
How the glue dispenser works:
1. Working principle: Compressed air is fed into the rubber bottle (syringe), and the glue is pressed into the feed pipe connected to the piston chamber. When the piston is in the upper stroke, the piston chamber is filled with glue, and when the piston pushes down the glue When the needle is inserted, the glue is pressed out of the needle nozzle. The amount of glue dripped is determined by the distance of the plunger, which can be adjusted manually or automatically controlled in the software.
2. Features: high speed, low sensitivity to adhesive viscosity.
3. Advantages: It can improve the dispensing speed, improve the dispensing environment, and improve the dispensing quality.

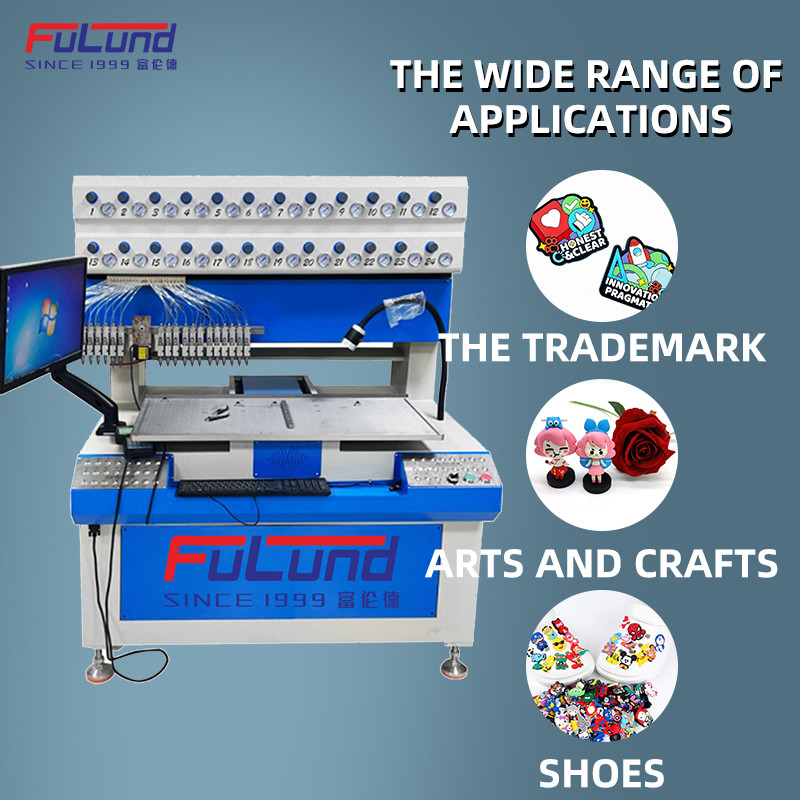

Application Rang: PVC/Silicon logo, Trademark for garment, footwear outsole/Strap/Vamp, Shoe welting, Cup pad, Silicon keyboard cover, Non-slip mat, Refrigerator Sticker, Disney soft toy, Silicon Key Chain, PVC Zipper puller etc....
Technical parameters:
| Model No. | FLD-24C |
| Machine Size | 1250*1050*1560mm |
| Weight | 420KG |
| Electric Heating Power | 1.6KW |
| Effective Trip | 850*480*80mm |
| Worktable Size | 890*460mm |
